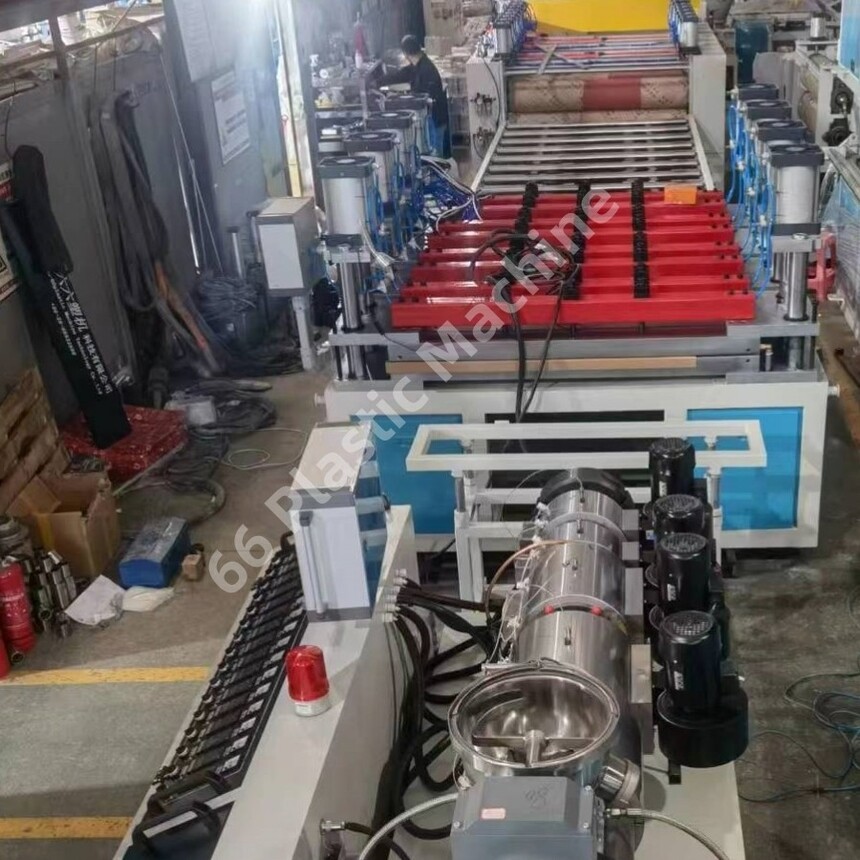

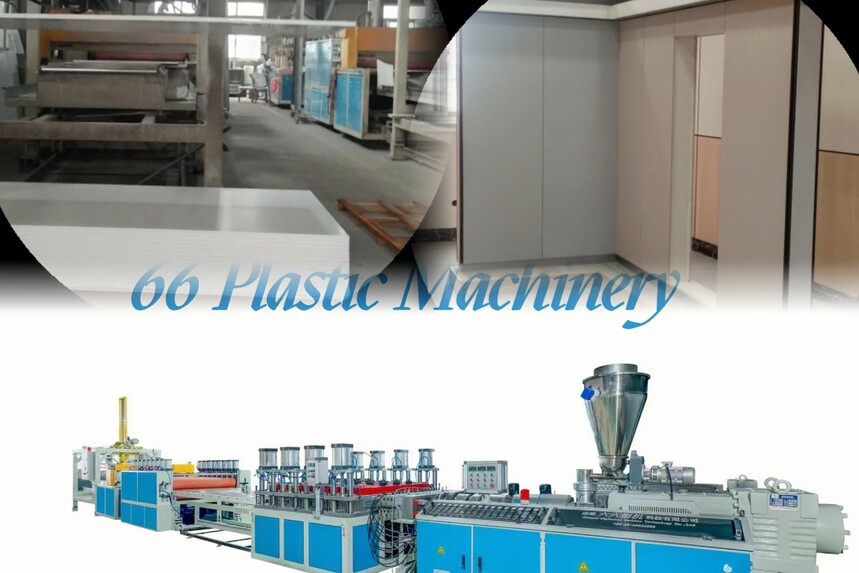

PVC/WPC board Extrusion Line is mainly composed of conical twin screw extruder,die,shaping platform,cooling bracket,tractor,cutting saw,manipulator and other auxiliary parts.The production line has the characteristics of low-noise energy-saving,high production efficiency,reasonable and compact structure,convenient use and maintenance and long service life.

Price: $118000

Collect

Board Extruder

Prominent Advantages

The main engine of 66 Plastic Machinery adopts the high-speed and high-efficiency gearbox reducer of domestic first-class brand,which has low noise and stable performance and can adapt to long-term high-speed operation.

The screw barrel is carefully researched,designed and customized to ensure high speed,high efficiency,super wear resistance and 24-hour extrusion capacity of single machine which is far ahead in the same industry. The special molding machine for plastic extrusion board has been updated repeatedly,and the running parts are made of all high wear-resistant materials,which has good and stable molding effect,can continuously increase the output along with the main engine,and has a service life ahead of the same industry.

The electrical components of 66 Plastic Machinery are made of famous brands at home and abroad,such as Siemens,Fuji,ABB,Schne1der and Inovance,etc.The industrial control system is durable and has strong power grid impact resistance.

Basic Info.

Model NO.

66-0408

After-sales Service

Engineers Available to Service Machinery Overseas

Warranty

1 Year

Product Type

Particle Board Making Machine

Automatic Grade

Automatic

Power Source

Electric

Screw Design

Double-Screw

Certification

CE, ISO

Condition

New

Customized

Delivery Time

Within 50 Days

Feeding Mode

Multiple Feed

Computerized

Exhaust

Assembly Structure

Seperated Extruder

Bearing Type

Long Service Life Bearing

Voltage

380V 50Hz 3pH or Optional

Motor

Siemens

Inverter

ABB

Temperature Controller

FUJI

Contractor

Schne1der

Trademark

66 PLASTIC MACHINE

Transport Package

PE Film and Pallet

Specification

28.20*5.15*5.20

Origin

China

HS Code

8477209000

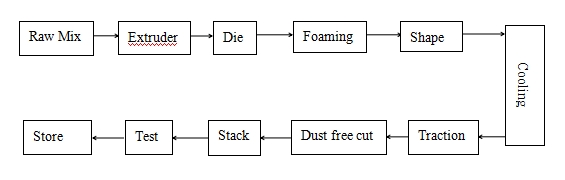

The Production Process of Plastic Board Extrusion Machine

Technical Datum

Main Technical Parameters
Standard Specifications Customized Service is available	Width: 1220(mm)
Standard Specifications Customized Service is available	Thickness: 3~25(mm)
Supporting Host	SJSZ80/156+SJSZ65/132
Yield	260Kg+400Kg
Max Traction	20KN
Traction Speed	300~5000(mm/min)

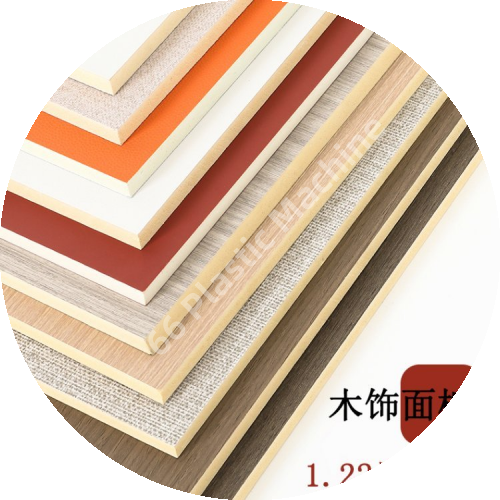

Output(Board) Application Area
1,Architectural Furniture:architectural template,furniture board,cabinet board,batch cabinet board,flooring.
2,Building decoration Industry:Exterior wallboard,Interior decoration board,house,office,public building compartment,commercial decoration frame,clean room board,ceiling board.
3,Advertising:screening printing,computer lettering,advertising signs,exhibition boards,signs with the board.
4,Chemical industry:anti-corrosion engineering,hot forming parts,cold storage board,special cold preservation engineering,environmental protection board.
5,Others:sports equipment,breeding materials,coastal moisture-proof facilities,water-resistant materials,art materials,all kinds of portable shelves.

With the improvement of people's quality requirements,wood decorative wall panel is another upgrade on the level of common bamboo and wood fiber wall panel.More ecological raw materials,more diverse size choices,more atmospheric visual effects gradually become the preferred products of the high-end market.In the past one or two years,the market demands for more wood wall panels.Quality home decoration, star hotels,high-end clubs and other places generally tend to choose wood wall panels.Good products can stand the test of the market.
